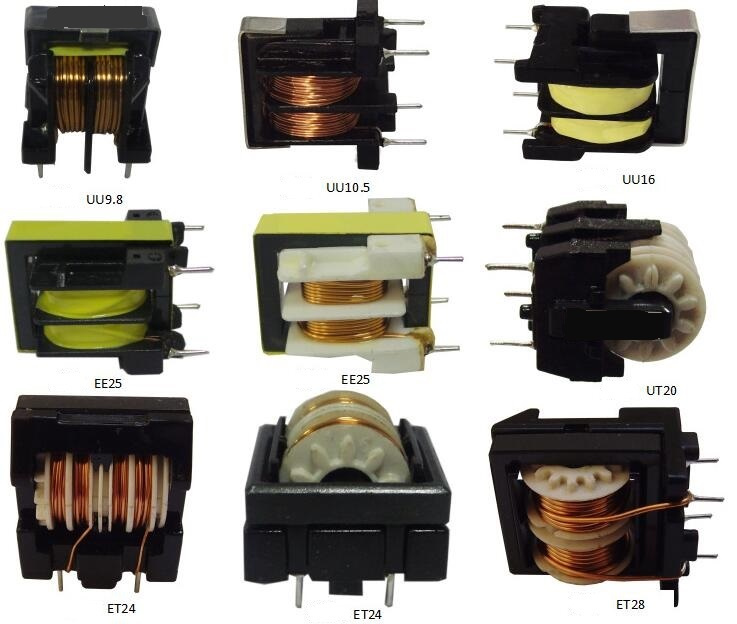

High Current Ut20|Uu9.8|Uu10.5 Line Filter

Name: High Current Ut20|Uu9.8|Uu10.5 Line Filter
Brand: all-electronics-online.com
SKU: 837050065
Availability: InStock
Rating: 4.8 (55 reviews)

Price:	US $ 0.3-0.5/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	UT20
Application:	Audio
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Separated Winding Transformer

Product Description

Type	Shape Structure	Dimension						Power range
Type	Shape Structure	A	B	C	D	E	F	Power range
EE8.3	Vertical	10.0Max	9.5Max	8.0±0.5	2.5±0.2	3.3±0.3	5.8±0.5	3W Max
EE10		12.0Max	13.0Max	10.4±0.5	2.5±0.2	2.5±0.3	5.8±0.5	4W Max
EE13		15.0Max	14.0Max	12.2±0.5	2.5±0.2	2.5±0.3	5.8±0.5	6W Max
EE16		17.5Max	15.0Max	14.4±0.5	3.5±0.2	3.8±0.3	5.8±0.5	10W Max
EE19		22.0Max	19.0Max	15.9±0.5	4.0±0.2	4.0±0.3	5.8±0.5	15W Max
EE22		24.0Max	20.0Max	16.5±0.5	4.0±0.2	4.0±0.3	5.8±0.5	20W Max
EE25		26.5Max	22.0Max	17.2±0.5	4.0±0.2	5.0±0.3	5.8±0.5	25W Max
EE28		30.0Max	22.0Max	21.8±0.5	4.0±0.2	5.0±0.3	5.8±0.5	50W Max
EE30		32.0Max	30.0Max	28.0±0.5	4.0±0.2	5.0±0.3	5.8±0.5	145W Max
EE35		37.0Max	30.0Max	25.6±0.5	4.0±0.2	5.0±0.3	5.8±0.5	350W Max
EE40		42.0Max	33.0Max	27.9±0.5	4.0±0.2	5.0±0.3	5.8±0.5	450W Max
EE42		46.5Max	43.0Max	37.4±0.5	4.0±0.2	5.0±0.3	5.8±0.5	500W Max
EE55		57.0Max	58.0Max	42.0±0.5	4.0±0.2	5.0±0.3	5.8±0.5	650W Max

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
